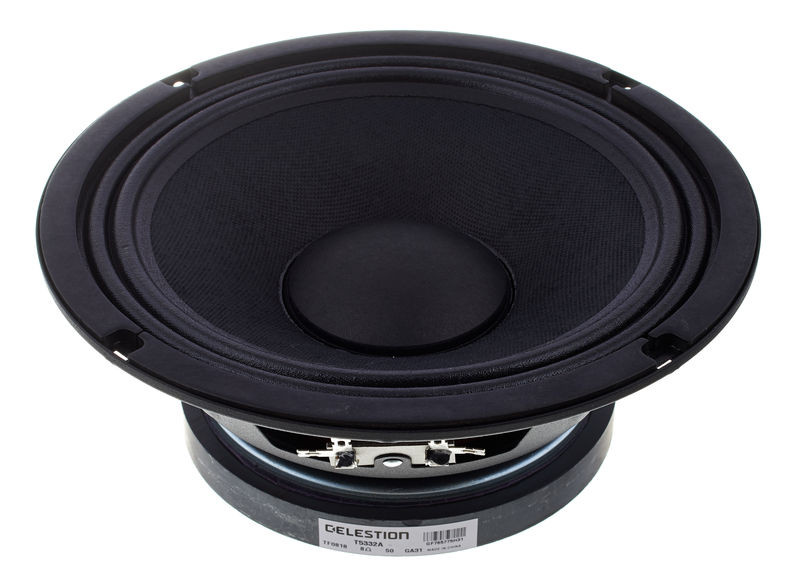

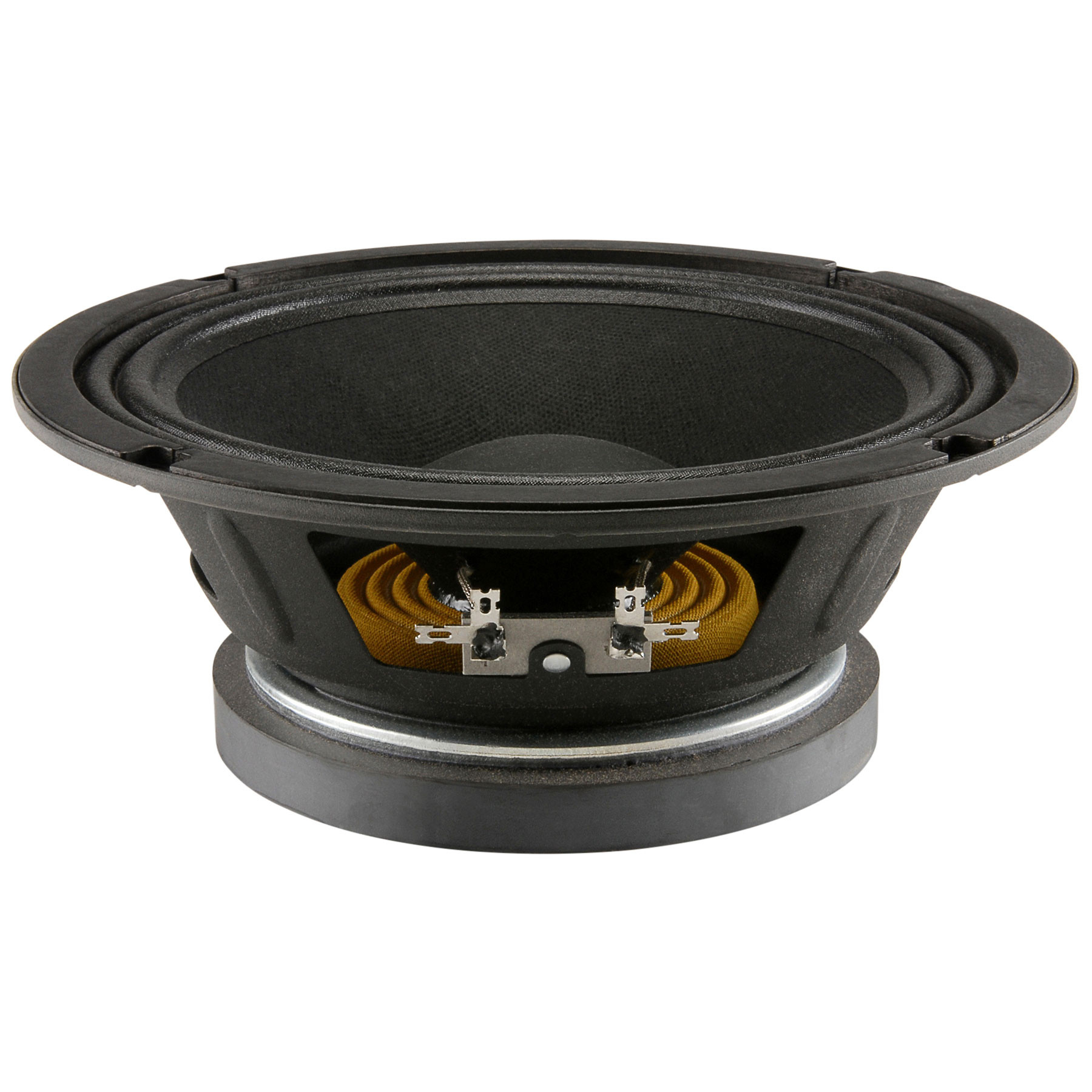

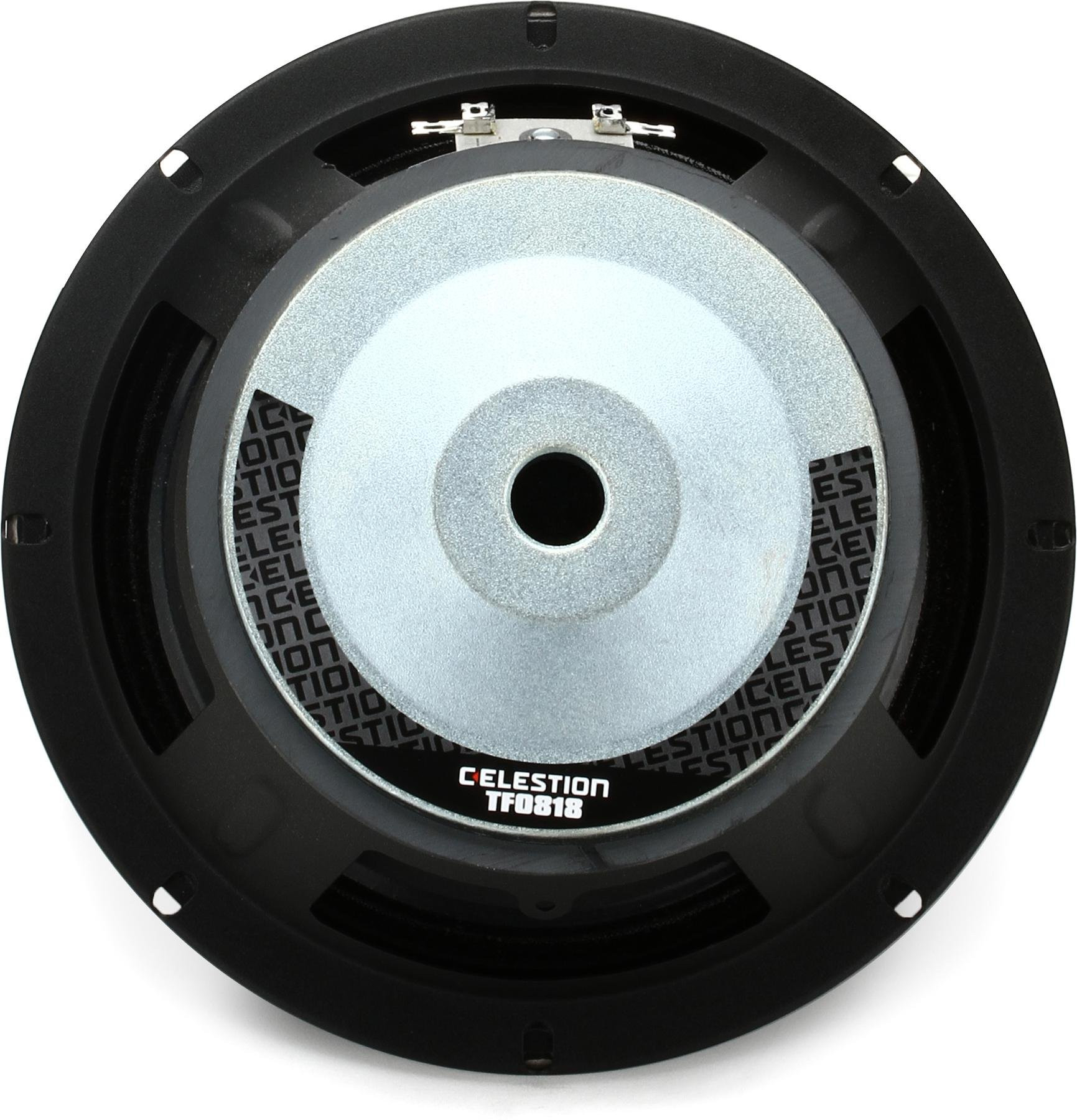

CELESTION Truvox TF0818 8 Ohm Głośnik nisko-średniotonowy

Opis

Product Specifications



• Nominal Diameter:  8″
• Power Handling (RMS):  100 Watts
• Power Handling (max):  200 Watts
• Impedance:  8 ohms
• Frequency Response:  70 to 6,000 Hz
• Sensitivity:  94 dB 2.83V/1m
• Voice Coil Diameter:  45mm
• Magnet Weight:  0,88kg



Thiele-Small Parameters



• Resonant Frequency (Fs):  95 Hz
• DC Resistance (Re):  6.4 ohms
• Voice Coil Inductance (Le):  0.75 mH
• Mechanical Q (Qms):  3.83
• Electromagnetic Q (Qes):  0.5
• Total Q (Qts):  0.44
• Compliance Equivalent Volume (Vas):  0.44 ft.³
• Mechanical Compliance of Suspension (Cms):  0.17 mm/N
• BL Product (BL):  11.36 Tm
• Diaphragm Mass Inc. Airload (Mms):  0.62g
• Moving Mass Of Diaphragm (Mmd):  0.55
• Maximum Linear Excursion (Xmax):  3.5 mm



Materials of Construction



• Cone Material:  Paper / Kevlar
• Surround Material:  Cloth
• Voice Coil Wire Material:  Copper
• Voice Coil Former:  Kapton® / Polyimide
• Basket / Frame Material:  Steel
• Magnet Material:  Ferrite



Mounting Information



• Overall Outside Diameter:  8.19″
• Baffle Cutout Diameter:  7.2″
• Depth:  3.54″
• # Mounting Holes:  4



Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)



• Sealed Volume:  0.19 ft.³
• Sealed F3:  171 Hz
• Vented Volume:  0.49 ft.³
• Vented F3:  87 Hz
